Understanding TWebRequest’s ContentFields and QueryFields with regard to MethodType

It seems rather obvious, but somehow the two are always being mixed up.

Thus, this will be 5 minutes well spent if you ever will implement a REST Web Service using TWebRequest.

This content does not refer to TMS WEB Core

TMS WEB Core components use the TWeb prefix. However, before that, a technology called DataSnap used it. This content refers to DataSnap. A web technology to write web servers and services quickly included with Delphi.

This article is kept so it is available for legacy projects. Please consider using TMS Sparkle, TMS XData, or another web server/service solution for new projects. In order to write Web applications, have a look at TMS WEB Core. On the bottom of this page you even find a book recommendation.

Considering the documentation QueryFields refer to parameters in the URL and ContentFields refers to the content of a POST request message. Of course, both GET and POST requests can have QueryFields. However, GET requests do not have ContentFields. Both parameters are mapped to TStringList in Delphi. Multiple values can be separated with an ampersand (&).

This seems all to be pretty straight forward. Let’s see how it works in reality.

I wrote an example POST request that has the following implementation:

procedure TModMain.WebModule1webSetResultsAction(Sender: TObject;
  Request: TWebRequest; Response: TWebResponse; var Handled: Boolean);
begin
  Response.Content :=
  '<html>' +
  '<body>' +
  'QueryFields: ' + Request.QueryFields.Text + '<br/>' +
  'ContentFields: ' + Request.ContentFields.Text +
  '</body>' +
  '</html>';

  Handled := True;
end;
As expected when sending the following POST request to the URL

http://localhost:8080/results?skip=0

with the content

Name=Holger

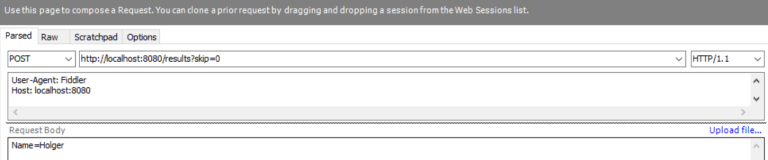

set up in the Fiddler composer…

Screenshot

…yields the following result:

<html>
 <body>
   QueryFields: skip=0<br/>
   ContentFields: Name=Holger
 </body>
</html>

Delphi gives us very easy access to parameters in URLs and the content of a POST request this way. The TWebRequest class also makes it possible to determine the method type of the request easily using TWebRequest.MethodType.

One might ask why that is necessary to check inside the method as the TWebActionItem also has a MethodType and thus the event is only called for one method type. Well, there is a special method type.

The type is defined as follows:

TMethodType = (mtAny, mtGet, mtPut, mtPost, mtHead, mtDelete, mtPatch);

You might implement one action event handler for all the different method types in Delphi and use mtAny. Inside the event handler you will then determine the method type using the MethodType property of the request.

One thing is very important to note: Accessing ContentFields will not throw an exception or the property will not be nil either; instead the list will simply not contain any elements.
